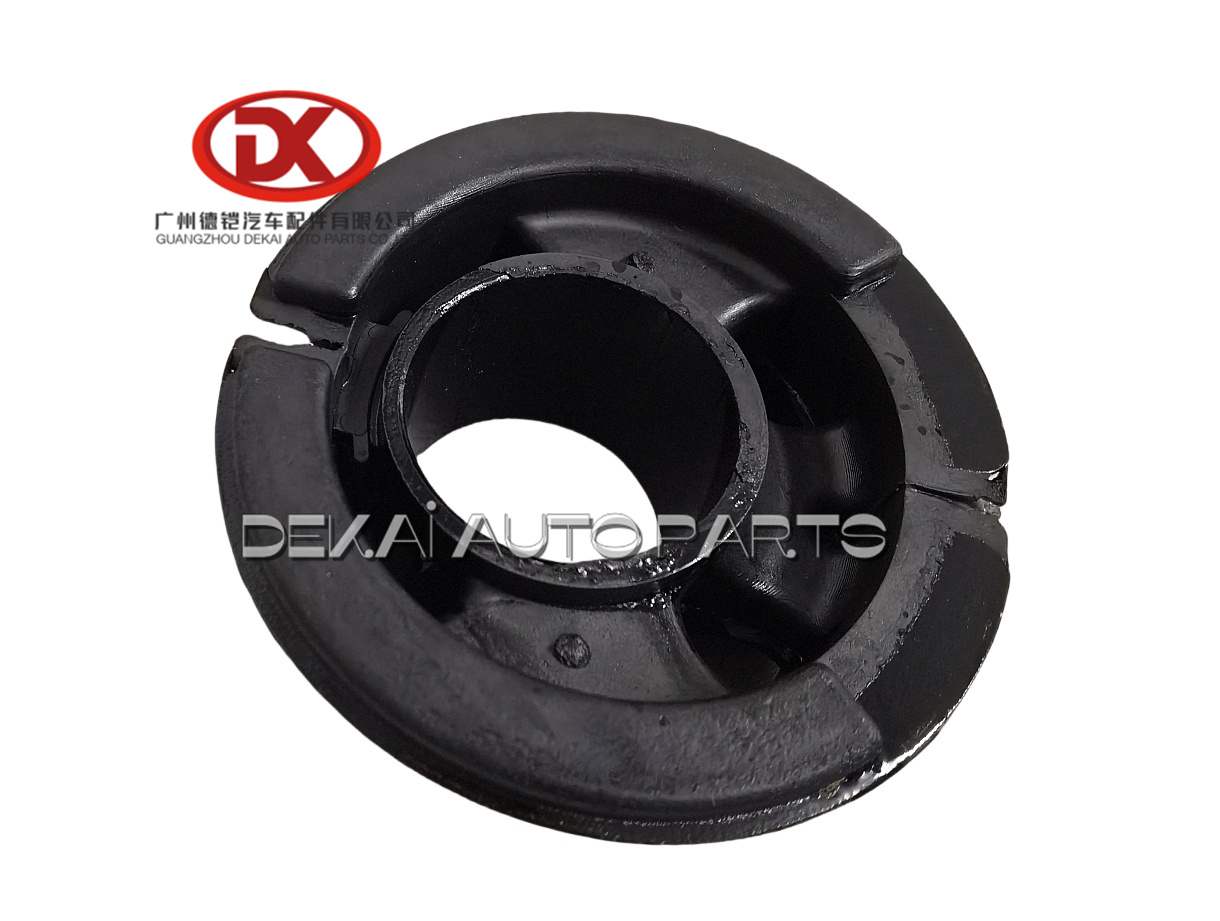

Rubber Bushing 8970951481 8 97095148 1 Truck Parts ISUZU NPR75 4HK1
| Part No. | WW120035 |
| OEM No. | 8970951481 8 97095148 1 |
| Description | Rubber Bushing |
| Model | ISUZU NPR75 4HK1 |
WW120035 8970951481 8 97095148 1 Rubber Bushing ISUZU NPR75 4HK1
More Parts:
| Part No. | OEM NO. | Part Name | Model |
| WW120020 | 8978929661 | Step cover plastic left | ISUZU NQR 71 |
| WW120021 | 8978929651 | Step cover plastic right | ISUZU NQR 71 |
| WW120022 | 8970736724 | Bumper bracket left ISUZU | ISUZU NQR 71 |
| WW120023 | 8970397965 | Bumper bracket right ISUZU | ISUZU NQR 71 |
| WW120024 | 8980675110 | Mirror bracket NLR/NPR left | ISUZU NLR/NPR 700P |
| WW120025 | 8980675100 | Mirror bracket NLR/NPR right | ISUZU NLR/NPR 700P |
| WW120026 | 8978592771 | Mirror bracket NQR left | ISUZU NQR 71 |
| WW120027 | 8978592761 | Mirror bracket NQR right | ISUZU NQR 71 |
| WW120028 | 8978520075 | Door hinge 2pcs | ISUZU NQR 71 |
| WW120029 | 8978679691 | Step metal left | ISUZU NQR 71/70 |
| WW120030 | 8978679681 | Step metal right | ISUZU NQR 71/71 |
| WW120031 | 8979978540 | Step plastic left | ISUZU NQR 71/72 |
| WW120032 | 8979978530 | Step plastic right | ISUZU NQR 71/73 |
| WW120033 | 8974072910 | Grill NLR L=110 | ISUZU NLR |
| WW120034 | 8975830484 5970765130 | Grill NPR 71 134CM | ISUZU NQR 71 |
| WW120035 | 8970951481 | Cabin torsion silentblock | ISUZU NQR 71 /NPR/NLR |
| WW120036 | 8972618720 | Cabin torsion | ISUZU NQR 71 |
| WW120037 | 8974060400 | Cabin cover left NPR/NLR | ISUZUNLR /NPR |
| WW120038 | 8974060410 | Cabin cover right NPR/NLR | ISUZUNLR /NPR |
| WW120039 | 8978521450 | Side window seal inner left | ISUZU NQR 71 /NLR |
| WW120040 | 8978521430 | Side window seal out left | ISUZU NQR 71 /NPR/NLR |
| WW120041 | 8978521441 | Side window seal inner right | ISUZU NQR 71 /NPR/NLR |
| WW120042 | 8978521420 | Side window seal out right | ISUZU NQR 71 /NPR/NLR |
| WW120043 | 8978538041 | Windshield seal inner | ISUZU NQR 71 /NPR/NLR |
| WW120044 | 8978579070 | Windshield seal outer | ISUZU NQR 71 /NPR/NLR |
| WW120045-NEW WW120089 | 8974289771 | Grill NPR 75 L=133 New | ISUZU NPR 75 |
| WW120045 | 8974072940 8974124004 | Grill NPR 75 L=133 | ISUZU NPR 75 |
| WW120046 | 8974053700 | Door pannel NLR left | ISUZU NLR/NPR |
| WW120047 | 8974053670 | Door pannel NLR right | ISUZU NLR/NPR |
| WW120048 | 8971809950 | Air filter air flow tubes set | ISUZU NQR 71 /NPR/NLR |
Working of Air Braking System :
When the brake pedal is pushed the brake valve opens and compressed
air is allowed into the brake chamber.
The brake valve consists of three passages.
1. Air intake
2. Exhaust
3. Brake chamber
When the brake pedal is pressed the exhaust passage will be closed
and Air intake passage open and compressed air goes back to the
chamber. During return stroke the exhaust passage opens while
intake closes and used air goes to the atmosphere. This system
fitted with an emergency mechanical brake, which can be used when
air supply fails the air brake system, which is called an
air-assisted hydraulic braking system.
Working principle:
As shown in the figure, in the air brakes the compressed air
(around 700 kPa) is used to actuate the brake mechanism. The figure
shows the complete layout of the Air Brake System. It consists of
Air filter, unloading valve, Air compressor, Air reservoir, Brake
valve, and 4 numbers brake chamber. The compressor takes
atmospheric air through the air filter and compresses the air. This
air is stored under pressure in the air reservoir. From this
reservoir air goes to various accessories of the vehicle which
operates on compressed air. Part of the air goes to the brake
valve. The control of the brake valve is done by a driver who
controls the intensity of braking according to an emergency.
Pedal Depressed: When the brake pedal is depressed, compressed air
from the reservoir is transmitted through pipes equally in all
directions to the brake chambers through brake valve which further
applies the brake.
Pedal Released: When the driver releases the brake pedal, the
master cylinder piston returns to its original position due to
return spring, and the pressure is dropped. It releases brake shoes
from brake drum to their: original position and brakes are
released.
FAQ
1.Q:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We will send you the
packing list and the photos of the products before your payment.
2.Q:Do you have MOQ request?
A: We don’t have MOQ request. We are wholesaler for ISUZU Truck
spare parts, we have a large stock of products.
3.Q: What is the delivery time?
A: The delivery is depends on the storage. If the items we have in
stock, we can make delivery within 7days. For the items need to be
ordered the delivery is betwen20-45 days.
4.Q.:Can you produce according to the samples?
A: Clients’sample is welcome. We are able to produce the specific
products according to your sample.
5.Q: Can l get a lower price if l order large quantities?
A: Yes, cheaper prices with bigger amount of order.
